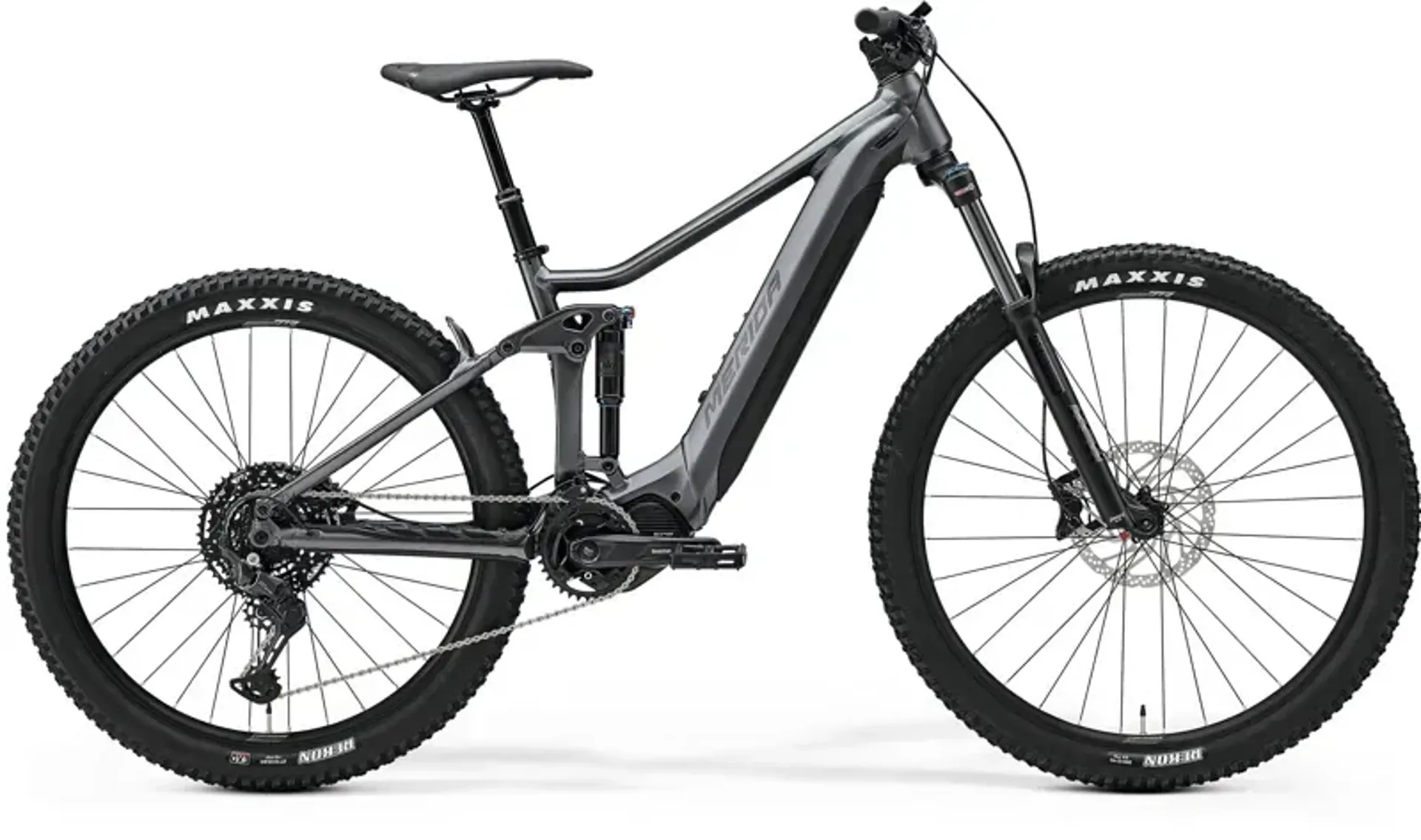

2024 Merida eOne 400 Overview
The 2024 Merida eOne 400 is an exciting entry into full-suspension eBiking, offering a perfect blend of performance, agility, and comfort. Designed for all-day riding and versatile terrain handling, this bike features a sleek aluminum frame that houses a powerful Shimano Steps EP6 motor with 85Nm of torque, and a Shimano 630Wh internal battery to keep you going on long rides.
Key Features and Highlights
- Motor: Shimano Steps EP6; 85Nm of torque
- Battery: Shimano EN806 630Wh internal battery
- Suspension: SR Suntour air suspension front and rear, providing smooth handling and shock absorption
- Drivetrain: Shimano CUES 10-speed, offering a reliable and precise gear range
- Hubs: Shimano Boost center lock hubs for enhanced wheel stability and performance
- Brakes: Shimano hydraulic disc brakes, ensuring powerful and consistent stopping power
The eOne-Forty vs. eOne-Sixty
While the eOne-Sixty is the star of the Merida eBike lineup, the eOne-Forty shares the same frame and design features, but with unique ride characteristics. The eOne-Forty is designed to be more agile and playful, with a shorter shock stroke that reduces rear travel to 133mm, and a 140mm front fork that creates a steeper seat angle and extends the reach. This setup makes the eOne-Forty an excellent climber, ideal for riders seeking a nimble and responsive bike.
Mixed Wheel Setup
The mixed wheel size setup combines a 29-inch front wheel with a 2.5" tire and a 27.5-inch rear wheel with a 2.6" tire. This configuration provides precise steering, excellent traction, and the ability to roll over obstacles smoothly, making it perfect for varied trail conditions.
Specification Details
- Frame: Lite III - Hydroformed 6061 Double butted aluminum with integrated battery, tapered head tube, and internal cable routing.
- Motor: Shimano Steps EP6; 85Nm
- Battery: Shimano EN806 630Wh internal battery
- Display: Shimano SC-EN600
- Charger: Shimano EC-E6002; 2A Charging current
- Shock: SR Suntour RS21 Edge Plus 2CR -M6; lockout
- Fork: Suntour XCR34 LOR DS; Air; Boost; 140mm travel
- Gears: 10-speed Shimano CUES U6000 drivetrain
- Brakes: Shimano hydraulic disc brakes, with a 203mm front rotor and a 180mm rear rotor
- Wheels: 29" front and 27.5" rear wheels with Maxxis Rekon tires (29" x 2.4" front, 27.5" x 2.6" rear)
- Saddle: Merida Comp SL with V-mount
- Seat Post: Merida Comp TR with adjustable travel (100mm M, 125mm L/XL, 150mm XXL)
- Colour: Silver/Black
- Season: 2024
Additional Features
- Front Light: CG-119PG
- Rear Light: CG-404RG
- Other: Shimano Satellite charging port; EW-CP100, GoPro & Supernova mount point
Summary
The 2024 Merida eOne 400 is an excellent choice for riders looking to get into full-suspension eBiking. Its powerful Shimano EP6 motor, large battery capacity, and high-quality components make it a versatile and reliable partner on the trails. Whether you're climbing steep hills or cruising on flat terrain, the eOne 400 is built to deliver a thrilling and comfortable ride.
